Premium Quality
Fiberglass Grating
Fiberglass Grating products for every industrial application — corrosion-resistant, lightweight, and durable FRP grating panels.
Galería
Industrial Platform Installation
Anti-Slip Grit Surface Detail
Water Treatment Facility

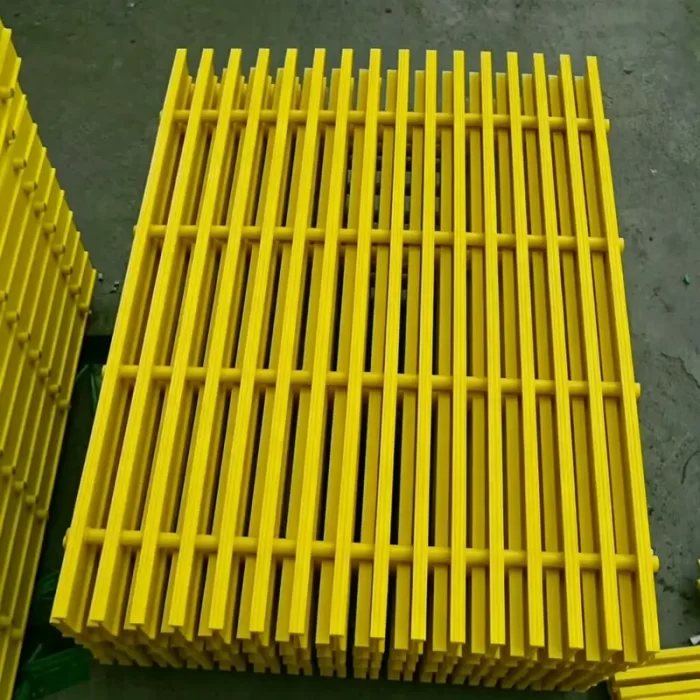

FRP Grating Detail Close-up
Overview
Premium Fiberglass Grating for Industrial & Commercial Applications
Our fiberglass grating (FRP grating) is manufactured using high-quality glass fiber reinforcements and premium resin systems through advanced pultrusion or molding processes. The result is a lightweight yet incredibly strong grid-structured panel that outperforms traditional steel, aluminum, and wood grating in corrosive environments.
Fiberglass grating offers exceptional corrosion resistance against acids, alkalis, solvents, and saltwater — making it the preferred choice for chemical plants, offshore platforms, water treatment facilities, and food processing plants. With a high strength-to-weight ratio, our grating is easy to transport, handle, and install, reducing labor costs and project timelines.
Available in a wide range of sizes, resin types (polyester, vinyl ester, phenolic), and surface finishes including anti-slip grit top. All products comply with international standards including ASTM D4381, NEMA 501, and ANSI/NAAMM. Custom panel sizes and cutouts available for your specific project requirements.

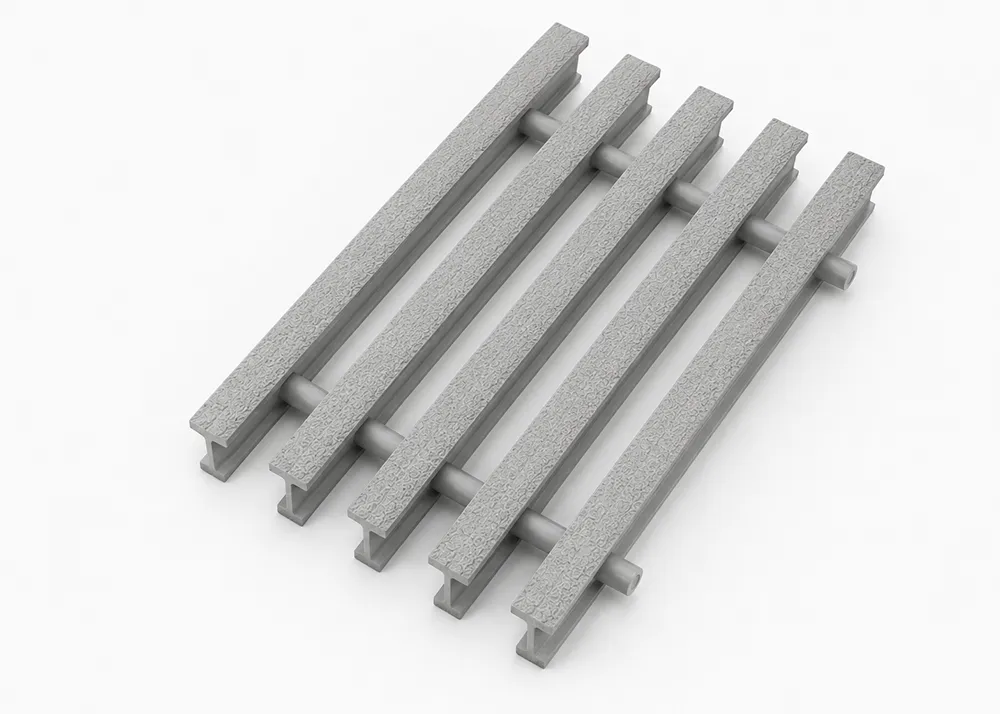

Fiberglass grating cross-section showing multi-directional grid pattern
Technical Specifications
Ficha Técnica
Technical Specifications
Key technical parameters for your reference
Dimensions
All panels can be fabricated with custom cutouts, rounded corners, and beveled edges per your specifications.
| Parameter | Value |
|---|---|
| Material | E-CR Glass Fiber + Isophthalic Polyester / Vinyl Ester / Phenolic Resin |
| Standard Panel Size | 1220mm × 3660mm (4ft × 12ft) / Custom sizes available |
| Thickness | 25mm (1"), 38mm (1.5"), 50mm (2") |
| Grid Pattern | 38×38mm, 25×100mm, 50×50mm standard mesh |
| Load Capacity | Up to 750 psf (36 kN/m²) depending on thickness |
| Resin Types | Isophthalic Polyester, Vinyl Ester, Phenolic, Orthophthalic Polyester |
| Fiber Content | 60% - 70% glass fiber by weight |
| Fire Resistance | Class A (ASTM E84), Class 1 (BS 476-7) |
Features
Features & Benefits
Key Features
Core product advantages at a glance
Superior Corrosion Resistance
Inherently resistant to acids, alkalis, solvents, and saltwater. Outlasts steel grating 3-5x in corrosive environments with zero rust or oxidation.
Lightweight & High Strength
75% lighter than steel with comparable strength. Reduces structural load requirements, simplifies handling, and speeds up installation.
Anti-Slip Safety Surface
Integrated grit-top surface provides excellent slip resistance (COF > 0.8) even in wet or oily conditions, meeting OSHA safety standards.
Non-Conductive & Non-Magnetic
Electrically non-conductive and non-magnetic, making it the safest choice for electrical substations, transformer areas, and sensitive equipment zones.
Low Maintenance
Requires no painting, coating, or regular maintenance. Simply wash down with water to maintain appearance and performance over decades of service.
Fire Retardant Formulations
Available with fire-retardant resin systems that achieve Class A flame spread rating (ASTM E84) and meet international fire safety codes.
